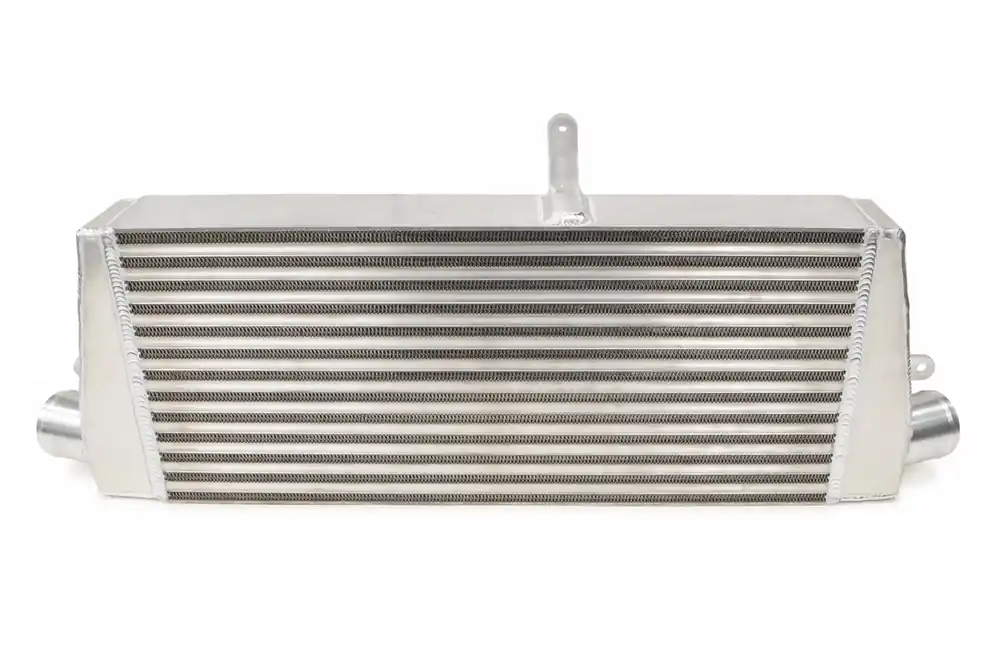

The STM Evo 4/5/6 Intercooler is made in-house from a 800 HP-rated 3.5″ Garrett core with tig-welded, aluminum end tanks, bead-rolled 2.5″ pipe outlets and pressure tested to 50 psi.
This FMIC can be used with the STM Evo 4/5/6 lower intercooler pipe and the STM Evo 4/5/6 upper intercooler pipe kit. This is not confirmed to fit with the factory piping.
Vehicle Fitment:
1996-2001 Mitsubishi Evolution 4/5/6
• Confirmed to fit with STM intercooler piping only
• Does not fit Evo 4 GSR (A/C condenser is in the way)
Install Notes:
May require slight adjustment of power steering lines.
Features:
• 800 HP Rated Garrett Core
• Core dimensions: 24″ x 10.5″ x 3.5″
• Tig Welded Aluminum
• 3.5″ Core
• 2.5″ Bead-Rolled Pipe Outlets
• Pressure tested to 50 psi
• Weighs 20.7 pounds• STM Products are made in the USA!
• Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.
Includes:
(1) STM Intercooler
(2) M8 x 20 Stainless Allen Bolts
(1) M6 x 25 Stainless Allen Bolt
(1) M6 Stainless Flat Washer
(1) M6 Stainless Lock Washer
Shipping Times: 1-14 Days
Hand crafted and welded in New York, please give our fabricators time to assemble your parts!
Updated Sep 2025:
Still with the same trusted Garrett core, we now use more STM CNC in-house components and the etched STM logo is on the bottom. Previous part number STM-EVO46-FMIC.
