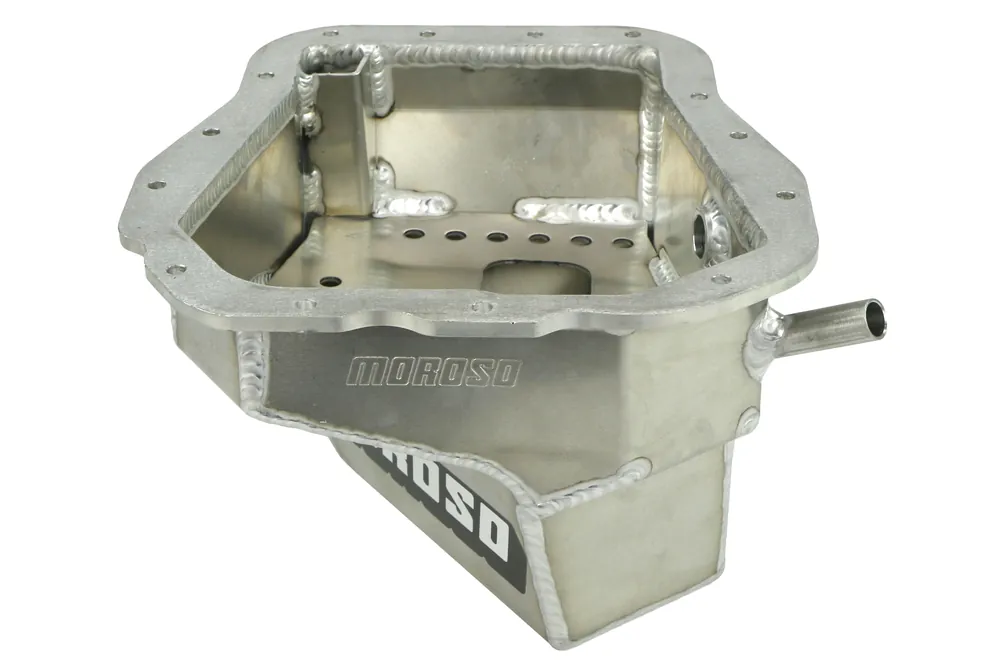

Moroso Aluminum Oil Pan w/ Pickup – Subaru Models (inc. 2002-2014 WRX / 2004-2014 STI)

Moroso Aluminum Oil Pan Subaru Models inc. 2002-2014 WRX 2004-2014 STI Moroso Oil Pans are wet sump pans intended for street-performance machines that occasionally see some track time. They are modified with a Deep Sump for increased capacity to improve oil control under hard acceleration and to help the engine run cooler. Moroso Oil Pans are designed for simple bolt-on installation.
Deep Sump pans offer improved oil control over stock pans because of their increased capacity. They are specially baffled with a swinging trap door. The one-way baffle keeps oil contained in the pickup area to prevent oil starvation under hard acceleration.
Features:

• Manufactured from .125″ thick aluminum One Piece 3/8″ thick billet aluminum oil pan rail provides a rigid flange for leak-free sealing
• Windage Tray for increased horsepower saving and oil control
• N.P.T. fitting that can be used for crankcase ventilation or for head drain back
• N.P.T. fitting for oil temperature sender
• Oil Pump Pick up and o-ring included
• High-Grade Mounting hardware included

Wet sump, 5-quart capacity Moroso oil pans will come with an oversized (non-OEM size) magnetic oil drain plug. It is 3/4-16 with a rubber o-ring, which is also known as -8AN / -8ORB.
