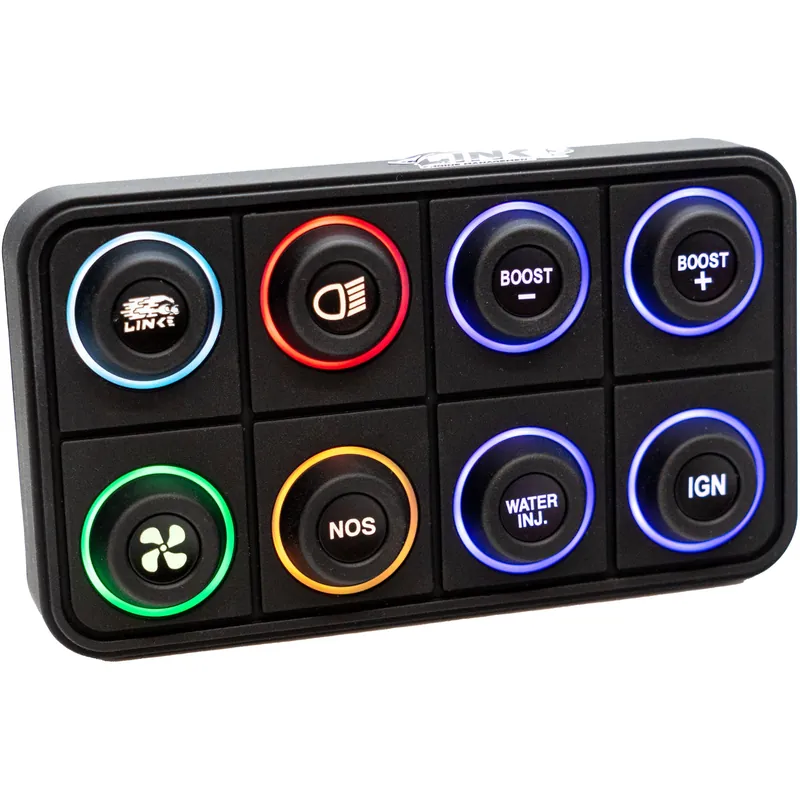

Link CAN Keypad 8 button

Rugged 8 key CAN Keypad with interchangeable 15mm inserts (sold separately). Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups. The keypad is designed for ultimate reliability – IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations. Can be installed both inside and outside, perfect for street, track and off-road use. Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose. Features: • CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle. • Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical. • (more…) Specifications: Connector – DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) Switch Life – 3 million operations CANopen Node ID – 0x15 (21) Default Baud Rate – 1000kbit/s Ingress protection Rating – IP67/IP69K Chemical Resistance – Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid UV Protection – UVB 400 hours Salt Spray Per – ASTMB117 Dimensions – 123.5mm (W) x 70mm (H) Mounting Specs: Mounting Stud Gap (Centre to Centre) 78mm Nuts thread: #10-32 Maximum torque: 0.8Nm
