Killer B Motorsport Aluminum Oil Pan Package – Subaru Models (inc. 2002-2014 WRX / 2004-2021 STI)

Killer B Motorsport Aluminum Oil Pan Package Subaru Models inc. 2002-2014 WRX 2004+ STI

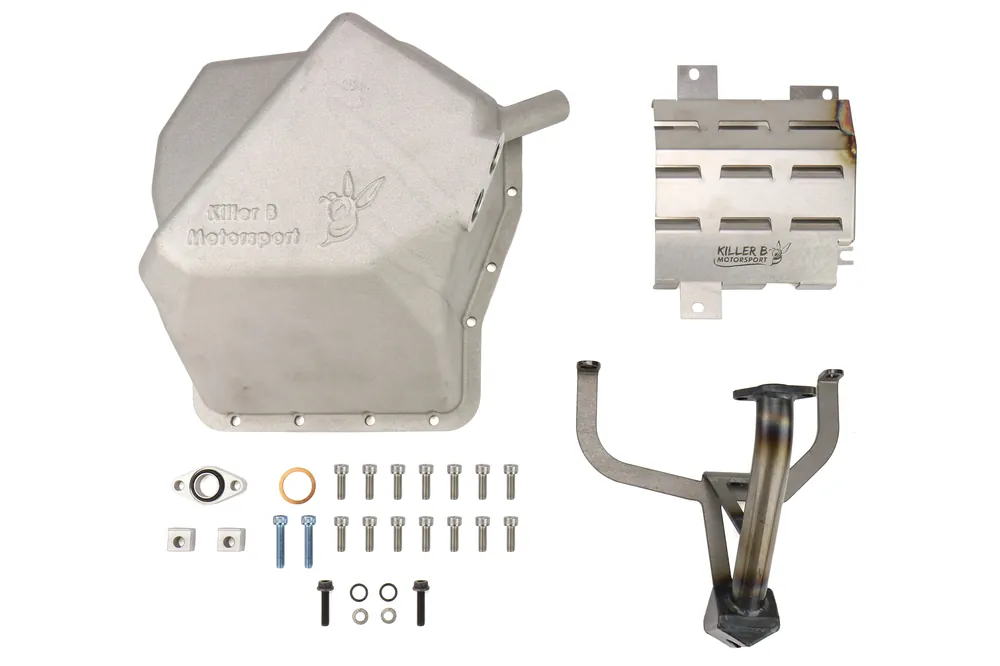

This is the Killer B Motorsport Aluminum WRX Oil Pan Package. This is the ultimate WRX oil pan package that includes Killer B Motorsport’s oil pan that has been designed to hold more oil while providing clearance for most aftermarket header/exhaust manifold setups. Below is a breakdown of the included components and their main purposes to improve the performance of your vehicle.

KILLER B MOTORSPORTS ALUMINUM OIL PAN:

• This Oil Pan holds an extra 1.4 quarts of oil, over 40% increase in capacity over the OEM one – This Oil Pan was designed to work with their Ultimate Oil Pickup (OEM ones are known to break), but can be modified to work with the OEM pickup
• This oil pan works with almost all headers and all are fit, and leak tested before leaving Killer B Motorsport – There have been reported issues of fitment issues with some Invidia headers, but not all
• Each pan comes with an OEM sized drain port as well as one 1/2″ NPT Port – You will need to get a plug for the NPT port if you don’t plan on using a quick drain valve or anything else
• OEM Belly pan will need to have a small piece trimmed on some models
• Turbo EJ20 engines will need to change to the STi dipstick and tube or simply mark the old dipstick with a new full mark

KILLER B MOTORSPORT OIL WINDAGE BAFFLE TRAY:

• Closed rear section to prevent oil from sloshing into the crank under hard acceleration and aggressive shifts
• Block contoured profile to minimize oil returning from the heads interfering with the crank
• Directional louvers prevent oil in the pan from splash/sloshing into the crank
• Low profile design to control windage and strip oil from the crank immediately to reduce oil “roping” on the crank
• Improved oil entry to the pan/pickup to help prevent oil starvation
• Made from stainless steel for long life, durability, and corrosion resistance

KILLER B MOTORSPORT ULTIMATE OIL PICKUP:

• This ULTIMATE OIL PICKUP uses a .12” thick double bracket, 3X OEM oil pickup tube thickness and a brace between bracket and oil pickup tube to further strengthen the assembly – This is a super duty, engineered solution that no other vendor has anything this rugged available
• Works with all Turbo EJ25 motors in the WRX/STI as well as some other cars with OEM oil pans as well as the Killer B Oil Pa – Turbo EJ20 cars will need to have a Turbo EJ25 oil pan installed to use this pickup
• 2004-2005 Forester XT and 2005 Legacy GT / OXT will need to verify their oil pan before ordering – In late 2005 Subaru changed the sump on those cars to match the Impreza lineup

RallySport Direct proudly carries high-performance oiling solutions brought to you by Killer B Motorsport. This is a great performance addition for your rally car, race car, or if you just want the added security of increasing your oil capacity on your aggressively driven daily!
