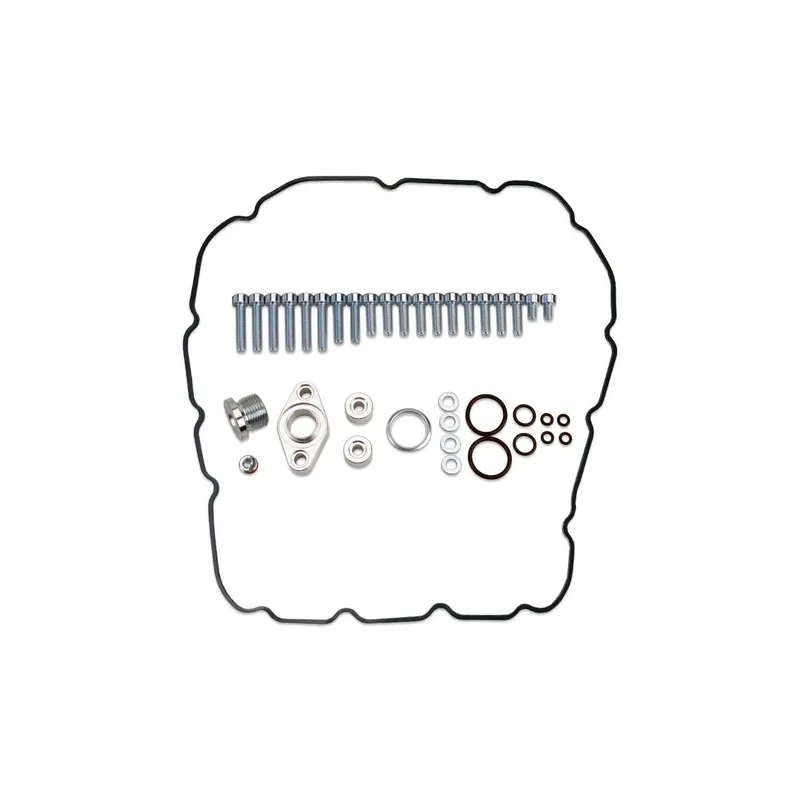

IAG Replacement EJ Oil Pan Hardware & Seal Kit

IAG EJ Oil Pan Hardware and Seal Kit — Replacement Kit for IAG EJ Oil Pans

Complete Replacement Hardware for IAG EJ Oil Pans
The IAG EJ Oil Pan Hardware and Seal Kit is a comprehensive replacement kit for all hardware and sealing components that come with new IAG EJ series oil pans. This kit covers the custom-molded oil pan gasket, oil pickup spacers, drain plug, drain plug washer, sensor port plug, all associated O-rings, and the socket head cap screws used during installation. It provides everything needed to reinstall an IAG oil pan correctly at service intervals or rebuild time.

DETAILS

• Includes: (1) custom-molded Viton oil pan gasket
• Includes: (1) oil drain plug
• Includes: (1) sensor port plug
• Includes: (1) oil pan drain plug washer
• Includes: (2) dipstick O-rings
• Includes: (4) -008 O-rings
• Includes: (2) -117 O-rings
• Includes: (1) CNC oil pickup spacer
• Includes: (2) oil pickup spacers
• Includes: (2) M6x25mm socket head screws
• Includes: (10) M6x20mm socket head cap screws
• Includes: (2) M6x10mm socket head cap screws
• Includes: (6) M6x30mm socket head cap screws
• Includes: (4) M6 flat washers
• Compatible with IAG-ENG-2200 series oil pans

Complete Kit — Nothing Missing
When reinstalling an IAG oil pan at a service interval or after an engine rebuild, sourcing each hardware piece individually is time-consuming and risks missing a critical seal. This kit includes every hardware and sealing component needed for a clean reinstallation — the custom gasket, all O-rings in the correct sizes, the drain plug, and all mounting hardware.

CNC Oil Pickup Spacer
The kit includes the CNC oil pickup spacer specific to IAG oil pans. This spacer sets the correct pickup-to-pan distance for proper oil scavenging and is not interchangeable with generic spacers. Using the correct spacer ensures the pickup is positioned correctly relative to the pan floor.

When to Use This Kit
Use this kit any time you remove an IAG EJ oil pan for service — at engine rebuilds, when replacing the AOS, during oil system maintenance, or any time the pan is dropped. The Viton gasket and O-rings should not be reused after compression.

Why Choose IAG Performance

IAG Performance has been building Subaru-specific engine and drivetrain components since 2001, and in that time they have become the standard by which serious Subaru builds are measured. Based in Westminster, Maryland, IAG designs, machines, and assembles their products in-house using Haas CNC equipment and their own engineering team. Their catalog spans everything from short blocks and long blocks rated to 1150 BHP all the way down to the fuel system, oiling, and drivetrain hardware that keeps modified Subarus running reliably for years. Every IAG product exists because a problem needed a better solution than what was available — and the engineering shows.

The RallySport Take

The IAG hardware and seal kit is the right way to reinstall an IAG oil pan. Having this kit on hand before the job means you are not waiting on parts mid-disassembly. Pick one up with your oil pan purchase so you have it for the first service interval.
