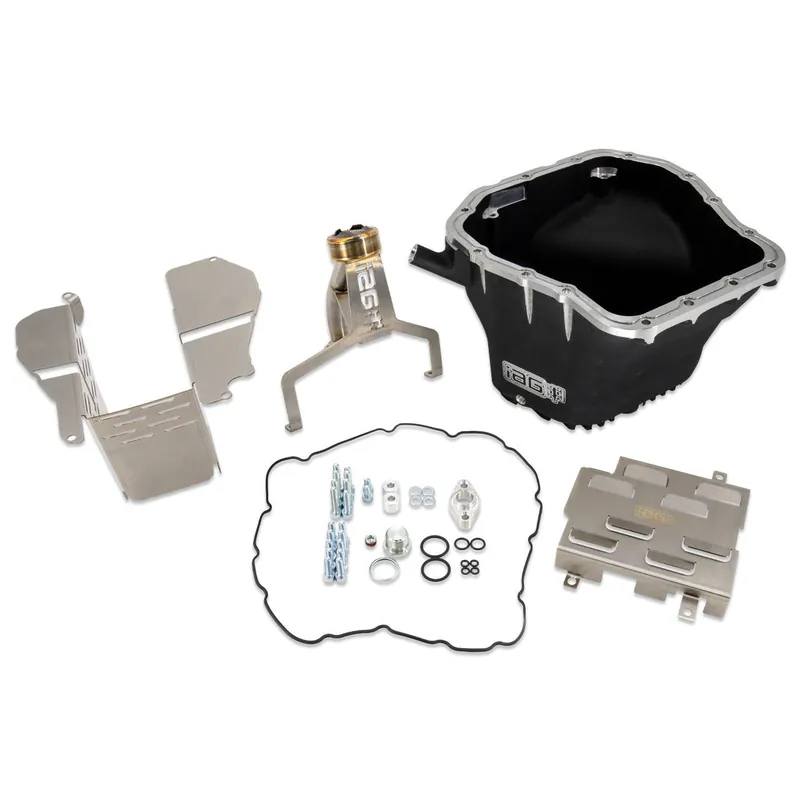

IAG EJ Street Series Oil Pan Package (Oil Pan, V2 Oil Pickup, Street Lower Baffle, Windage Tray) – Black – 2002-2014 Subaru WRX / 2004-2021 STI / 2005-2009 Legacy GT / 2004-2013 Forester XT

IAG EJ Street Series Oil Pan Package (Pan / Pickup / Street Baffle / Windage Tray) — Black — 2002-2014 WRX / 2004-2021 STI

Complete Street Oil System Upgrade in One Package
The IAG EJ Street Series Oil Pan Package is a complete oil management upgrade that combines the IAG Street Series Oil Pan, V2 Oil Pickup, Street Lower Baffle, and Windage Tray in a single package. Every component is engineered to work together as a unified system — no need to source individual parts or verify compatibility. Available in Black finish on the oil pan.

DETAILS

• Color: Black finish on oil pan
• Package includes: IAG Street Series Oil Pan, IAG V2 Oil Pickup, Street Lower Baffle, and Windage Tray
• Cast aluminum oil pan — increases oil capacity up to 30% over OEM
• Designed to clear popular aftermarket headers
• External cooling fins for oil temperature reduction
• Bottom-facing drain plug and 1/8″ NPT temp sensor port
• IAG V2 Oil Pickup: heavy-gauge steel tubing, 3/8″ stainless steel flange, Viton O-ring, OEM-style mesh filter
• Street lower baffle prevents oil starvation during hard street and track driving
• Stainless steel windage tray with precision-formed louvers directs oil back into the pan
• All components engineered to work as a unified system
• Fits: 2002-2014 WRX / 2004-2021 STI / 2005-2009 Legacy GT / 2004-2013 Forester XT

Why Buy a Package vs Individual Components
Sourcing an oil pan, pickup, baffle, and windage tray individually means verifying fitment compatibility between every component. IAG’s package eliminates that work — every part is selected to work together and is tested as a complete system. The package also ensures you receive the correct V2 oil pickup that is compatible with IAG pans, since the geometry of aftermarket pickups varies between manufacturers.

IAG V2 Oil Pickup
The OEM EJ25 oil pickup is a known failure point — the thin-gauge tubing is prone to cracking, which leads to catastrophic oil pressure loss and engine failure. IAG’s V2 Pickup uses heavy-gauge steel tubing that is 3 times thicker than OEM, a 3/8″ stainless steel flange, and a Viton O-ring seal. It is TIG-welded throughout and includes an OEM-style steel mesh filter.

Street Baffle and Windage Tray
The Street Lower Baffle prevents oil from sloshing away from the pickup under hard driving, and the stainless steel windage tray uses precision-formed louvers to direct oil draining from the cylinder heads back into the pan rather than allowing it to slosh into the rotating assembly.

Why Choose IAG Performance

IAG Performance has been building Subaru-specific engine and drivetrain components since 2001, and in that time they have become the standard by which serious Subaru builds are measured. Based in Westminster, Maryland, IAG designs, machines, and assembles their products in-house using Haas CNC equipment and their own engineering team. Their catalog spans everything from short blocks and long blocks rated to 1150 BHP all the way down to the fuel system, oiling, and drivetrain hardware that keeps modified Subarus running reliably for years. Every IAG product exists because a problem needed a better solution than what was available — and the engineering shows.

The RallySport Take

The IAG Street Series Oil Pan Package is the complete solution for EJ25 oil system reliability. Upgraded pan, stronger pickup, and proper baffling in one box. If you are going to do it, do it right — the package is more efficient than buying individual components and eliminates any compatibility concerns.

Fitment
