Go Fast Bits FX-R Fuel Pressure Regulator – Universal

Go Fast Bits FX-R Fuel Pressure Regulator Universal

The Go Fast Bits FX-R Fuel Pressure Regulator is available for those looking to supplement their fuel systems to handle high horsepower applications. This regulator has been designed with many key features which include a 1:1 fuel pressure rise rate and has adjustable static pressure from 28 PSI to 72 PSI. It has a double layer reinforced diaphragms that have a bursting rate that exceeds 1000 PSI. It has two -6ORB ports for the fuel inlets, one -6ORB return port, and 2X 1/8″ NPT ports for either a pressure gauge or the ports can be used for additional sensors.

This regulator can support applications making as much as 1500HP through various forms of fuel which include gasoline, ethanol, methanol, or diesel. This regulator is completely serviceable and has a spring pre-load adjustment screw that is o-ring sealed which will not leak vacuum or boost.

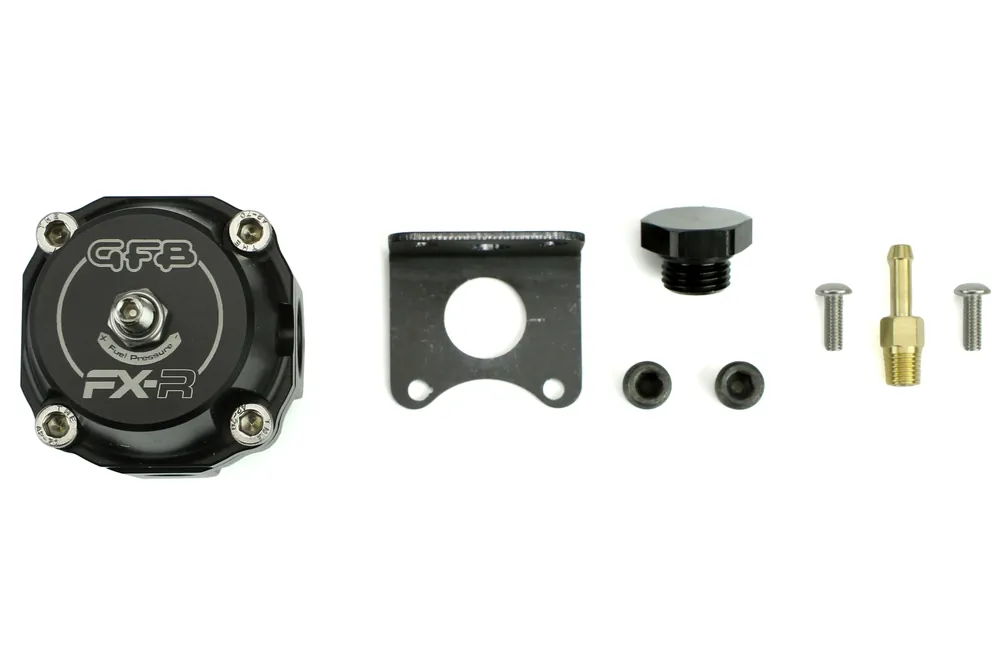

This regulator will come with hardware, a bracket, and misc. fittings to make it ready to install.
