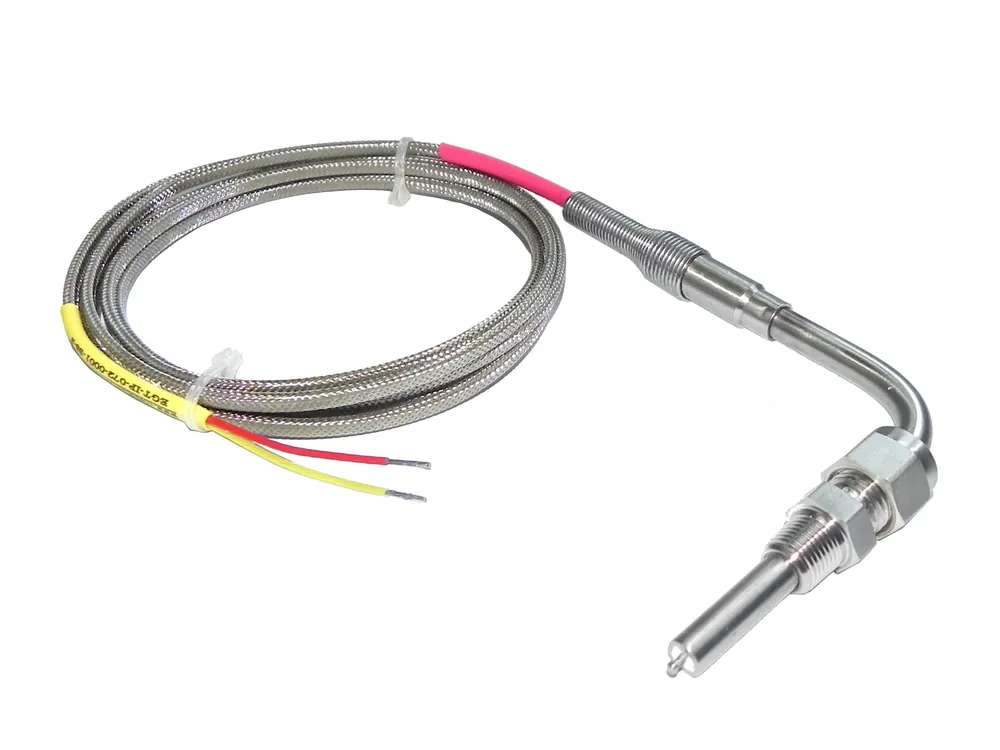

Exhaust Gas Temperature Probe (EGT)

Extreme Duty Fast Response EGT Temperature Probe Type K thermocouple probe Exposed sensing junction for fastest response Includes 316 SS adjustable compression fitting Stainless steel protected wires Designed for extreme engine test & racing environments When using this with an ECU other than the Thunder, you will need to use an amplifier. Specifications Thermocouple type: K Range: -148 to 2372°F (-100 to 1300°C) Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error) Probe diameter: 1/4 inch (0.250 inch) (6.35 mm) Sensing Junction: Exposed, Ungrounded Response Time*: 150 mS *Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change Five time constants are required to approach 100% of the step change value Outer Sheath Material: Inconel, melting point 2550°F (1400°C) Cable: Stainless steel overbraiding over Teflon™ insulated, stranded wires, 20 gauge. 6ft / 1.8m in length. Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread Wiring: + = Yellow – = Red
