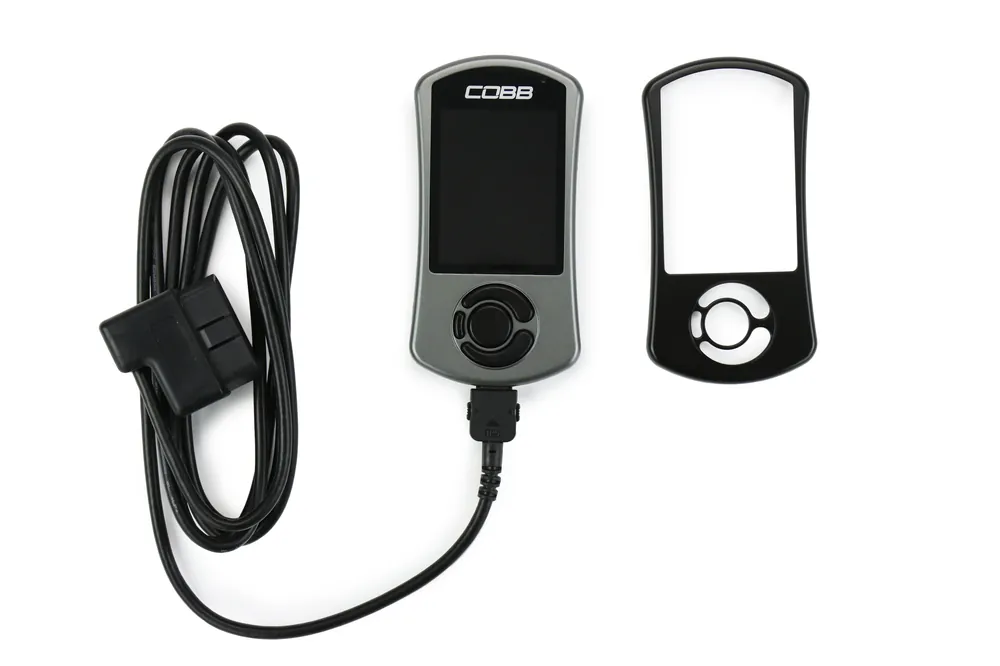

COBB Tuning AccessPORT V3 – 2007-2013 Mazdaspeed3 / 2006-2007 Mazdaspeed6

Cobb Accessport V3 — 2007-2013 Mazdaspeed3 / 2006-2007 Mazdaspeed6

The Cobb Accessport V3 for the 2007-2013 Mazdaspeed3 and 2006-2007 Mazdaspeed6 brings professional ECU calibration to the MZR DISI 2.3T direct-injection turbocharged platform. OTS maps for 91, 93, and E85, live gauge display, full high-speed data logging, and OBD-II code management — applied to one of the most engaging and tuning-responsive front-wheel-drive turbocharged platforms available.

DETAILS

• Covers: 2007-2013 Mazdaspeed3 MZR DISI 2.3T and 2006-2007 Mazdaspeed6 MZR DISI 2.3T
• OTS maps: 91 octane, 93 octane, E85 — separate calibrations for Gen 1 (2007-2009) and Gen 2 (2010-2013)
• Maps for stock configuration, intake, and downpipe modification states
• Live gauges: up to 6 parameters including boost, IAT, AFR, fuel trims
• High-speed data logging
• Read/clear OBD-II fault codes
• Free lifetime updates
• NOTE: Ships via UPS/FedEx — signature required at delivery
• NOTE: Emissions regulations may affect availability of select maps in certain regions

Accessport V3 Specifications

Display	2.8-inch full-color, high-resolution touchscreen
Gauges	Up to 6 live parameters simultaneously — fully customizable layout
Flash speed	Full ECU flash in under 3 minutes on most platforms
Map storage	Multiple OTS and custom maps stored on device — switch without a laptop
Data logging	High-speed onboard logging — review on screen or in Cobb Accesstuner software
OTS maps	Platform-specific maps for stock and common modification states — included
Custom maps	Load ProTuner custom maps via USB
Faceplates	Two interchangeable colored faceplates included
Mount	Universal in-vehicle mount included — 1,000+ additional mounts available
PC connectivity	USB for map transfers; OBD-II port for vehicle communication
Fault codes	Read and clear OBD-II diagnostic trouble codes
Updates	Free firmware and OTS map updates for the life of the device

MZR DISI Calibration: Generation-Specific Maps and E85 Support

The MZR DISI 2.3T is a direct-injection turbocharged four-cylinder with factory torque figures that challenge engines of significantly larger displacement — it builds strong mid-range torque early in the rev range and maintains it broadly. The factory calibration is conservative in fueling and boost targets, with ignition timing pulled back from what the engine can support on quality premium fuel. Cobb’s OTS maps for the Mazdaspeed3 address these targets with generation-specific calibrations — the Gen 1 (2007-2009) and Gen 2 (2010-2013) Mazdaspeed3 use different ECU hardware and different factory calibration starting points, so each receives independently developed maps rather than shared calibrations. E85 support provides a substantial additional option for Mazdaspeed3 owners who want to use ethanol’s charge cooling and high effective octane rating. The Mazdaspeed6 shares the MZR DISI engine family in an AWD sedan body and receives the same calibration quality.

IAT Monitoring, Data Logging, and Custom Tuning

The Accessport’s data logging is valuable for monitoring the MZR DISI’s known sensitivity to intake air temperature — on hot days, high IAT can cause the factory ECU to pull timing significantly. With the Accessport logging IAT and knock activity, an owner or ProTuner can see exactly when and why the engine is pulling back, and build a calibration strategy that accounts for it precisely. The live gauge display shows up to six parameters simultaneously — boost, IAT, AFR, fuel trims, coolant temperature — giving the driver real-time data the factory Mazdaspeed3 instrument cluster never provides. Custom calibration for intake and downpipe builds is supported through the same ProTuner map transfer process as all Accessport platforms.

What’s in the Box

• Cobb Accessport V3 unit
• OBD-II cable
• USB cable
• 2 interchangeable faceplates
• Universal in-vehicle mount

Why Choose Cobb Tuning

Cobb Tuning has been developing performance software and hardware for turbocharged enthusiast vehicles since 1999. Founded in Austin, Texas, Cobb built its reputation on the Accessport and expanded into a full catalog of hardware engineered to complement it. Every OTS map is developed in-house on real vehicles, and every hardware product is validated as part of a complete system — not sourced and sold in isolation. That integrated approach is why Cobb produces consistent, reliable results across the builds we see every day.

The RallySport Take

The Cobb Accessport V3 for the Mazdaspeed3 and Mazdaspeed6 is for Mazda performance owners who want their MZR DISI running at its actual capability. The Mazdaspeed3 has always been an underrated performance car — quick, engaging, and deeply responsive to quality calibration. The Accessport is the foundation that makes everything else on this platform work correctly.

Fitment

Year	Make	Model	Notes
2007-2013	Mazda	Mazdaspeed3	MZR DISI 2.3T MT
2006-2007	Mazda	Mazdaspeed6	MZR DISI 2.3T MT
