AEM Electronics CD-7L Carbon Dash Display Logging / Non-GPS – Universal

Aem Electronics Digital Dash Display CD-7L Logging Racing Dash Can Input Only W Wiring Harness

RallySport Direct proudly carries quality high-performance electronic upgrades and accessories brought to you by AEM Performance.

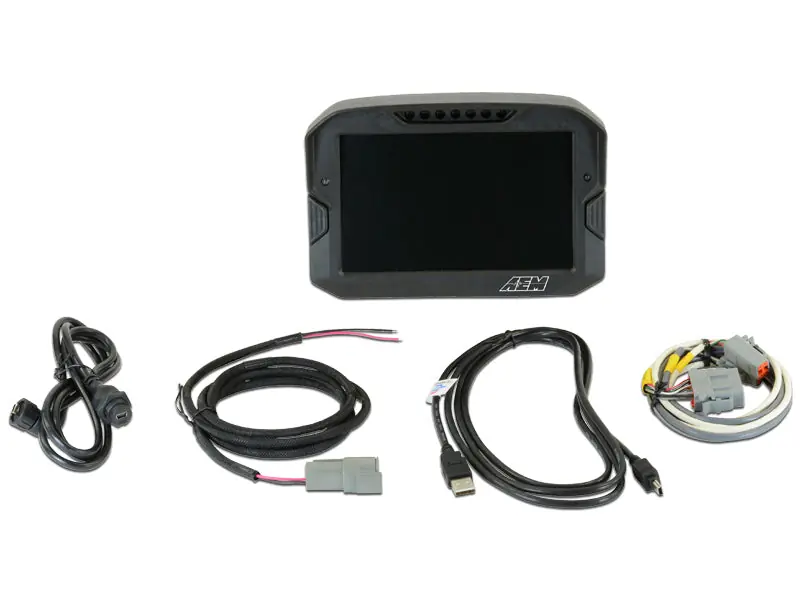

On this page, you are looking at the AEM CD-7 Carbon Digital Logging Racing Dash Display. This display is protected by a carbon fiber enclosure and features a full-color daylight readable screen along with seven ultra-bright LEDs that are mounted at the top. This is a great way to monitor all the major parameters in your race car, or your street car.

Here are the main details:

• Full color 7″ screen with 800×480 resolution
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable with all versions of the CD-5 Carbon
• Wiring interface/harness is identical to the CD-5 carbon
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Total display weight of 20.9/595 grams
• IP65 water resistance-open cockpit, marine and motorcycle safe
• Accepts channels from two separate user programmable CAN bus connections-works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Plug and play adapter cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable
• Install the CD-7 Carbon on carburated and pre-2008 stock ECU-equipped vehicles
• Available with or without 200mb internal logging
• Available with or without onboard 20Hz GPS receiver and antenna
• The option is available to add an 8 channel K-type EGT CAN Module for 8 additional temps
• Seven programmable pages including four main pages, alarm, on-change, and start-up pages
• Dedicated alarm page layouts and input your channels and text, or create your own from scratch
• Free DashDesign Graphics Editor software
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Two programmable LEDs
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons
• Headlight-in connection dims the dash and LEDs during night operation
• Two extra switch inputs included for displaying user-triggered events for blinkers, high beams, etc
• User-supplied graphics
• Convert CAN bus channel values to user-defined text in multiple languages
• WIRING INCLUDED

NOTE: This is the LOGGING and NON-GPS version.
